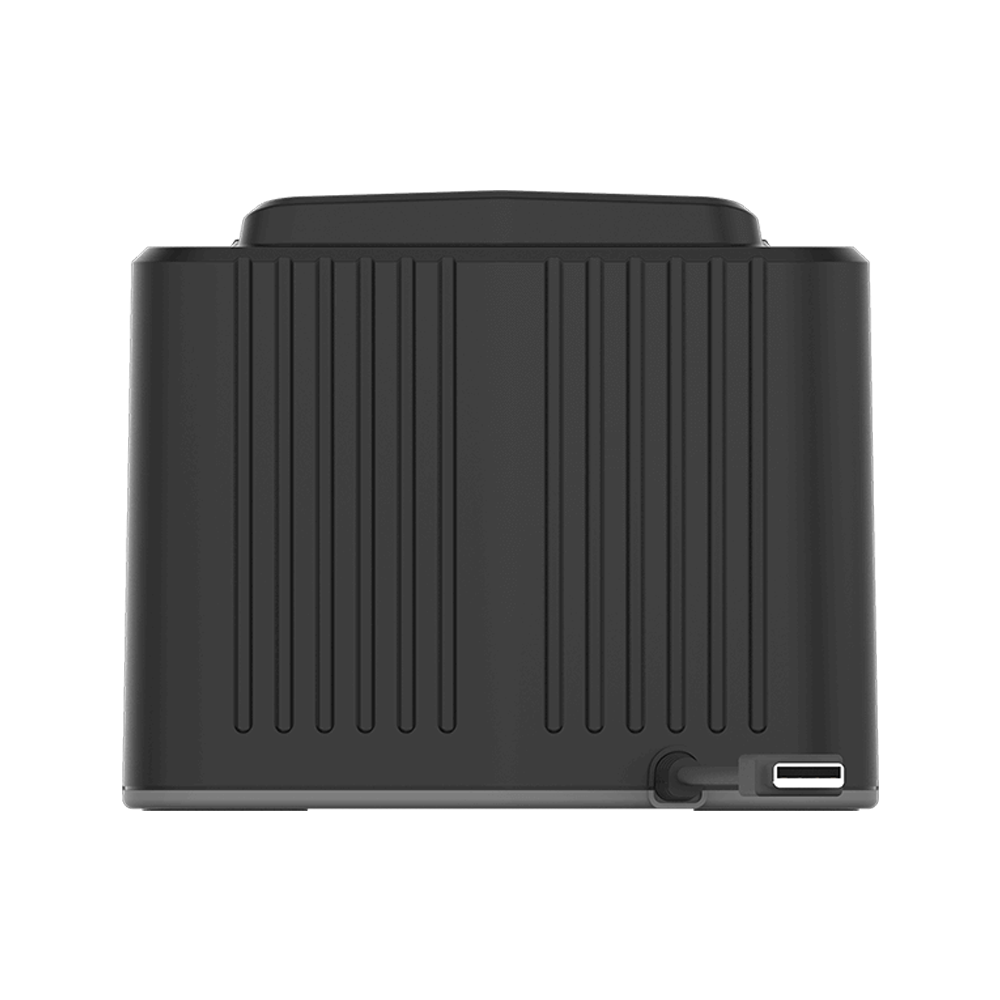

Mantra MORPHS Portable Multi Fingerprint Scanner 1 Year Warranty

24,500.00

BrandMantra
Model NumberMORPHS-60
Warranty1 Year
OriginMade in India
Manufactured byMantra Softech India Private Limited
OS Support Windows x86 & x64, Android
Sensor TypeOptical Scratch Free Sensor
Resolution500 DPI +/- 1%
Grayscale256 (8-Bit Gray Level)
Image Size1600 x 1500 Pixels
Supported Image FormatsISO 19794-2:2011 for minutiae, ISO 19794-4:2011 for image template, WSQ3.1, JPEG2000
FBI / Image CertificationsFBI’s IAFIS Appendix-F & Mobile ID FAP60 certified
Speed/API Interface: Capturing Speed3.3 frames per second (F)
Quality ScoringAuto capture with built-in quality check (incorporates NIST quality considerations)
Product WeightApprox. 1.6 kg (3.6 lbs)
Platen Size3.5 x 3.2 in. (90 x 81 mm)
Active Platen Area3.2 x 3.0 in. (81.2 x 76.2 mm)

About this item

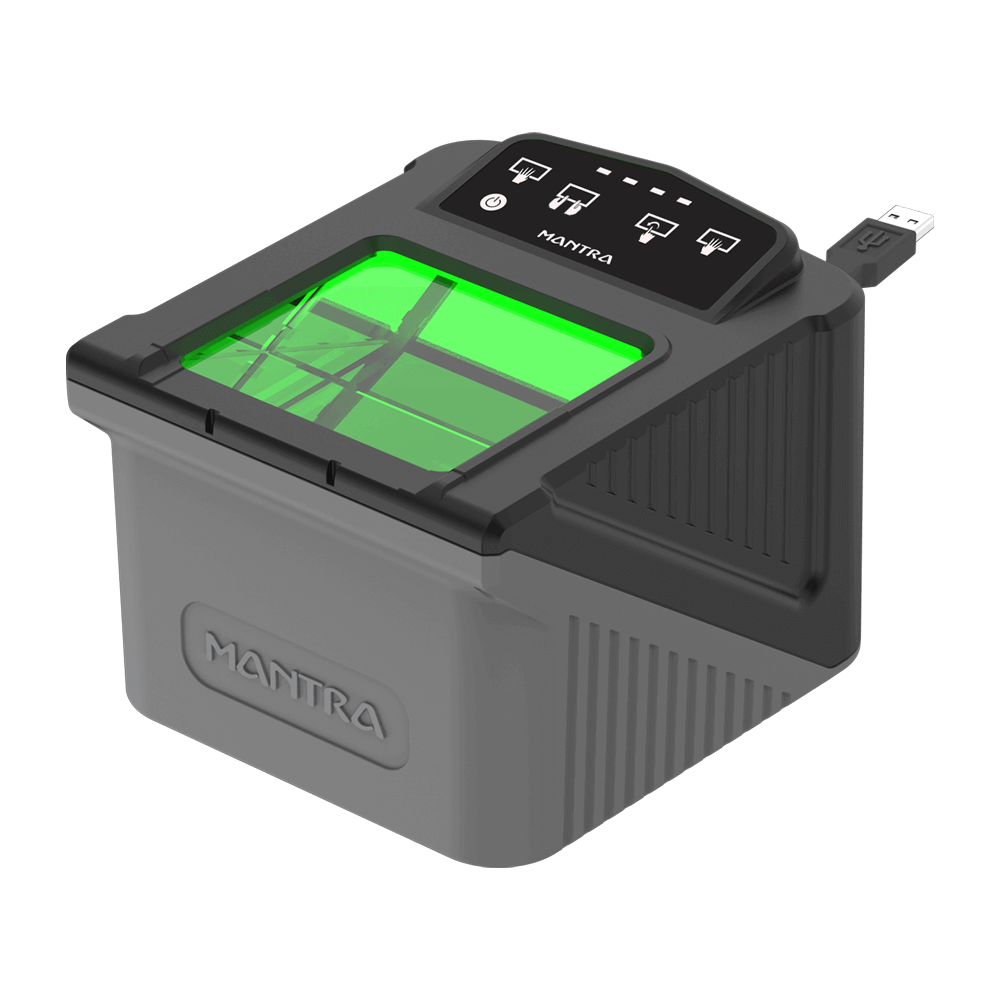

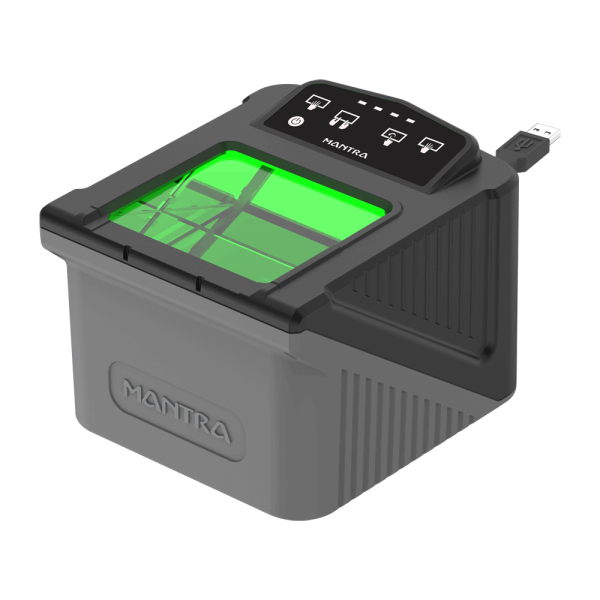

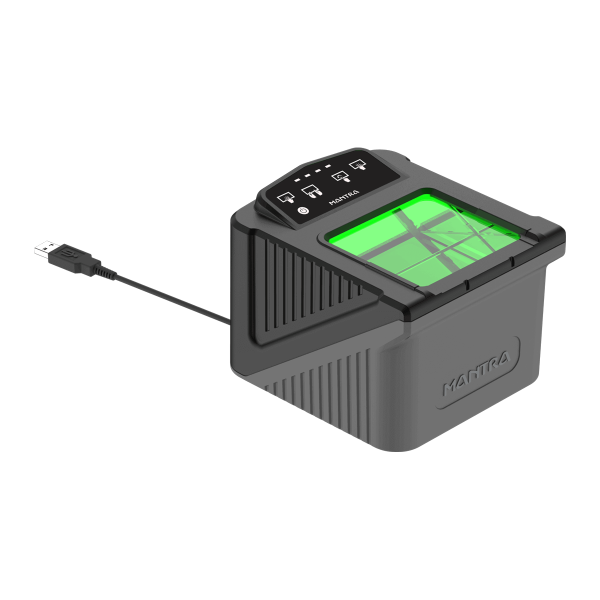

The Mantra MORPHS-60 is the latest portable multi-fingerprint scanner that is capable of addressing the high performance biometric identification and verification requirements.
This advanced device can capture all ten prints at one time and four fingers slapped along with two thumbs which makes it an ideal for national ID projects, police checking, immigration and visa, and criminal identification.

MORPHS-60 is equipped with the modern optic system that ensures the fast, precise, and effective fingerprint capture. With a spatial resolution of 500 DPI, it affirms an ideal fingerprint image that is in congruence with the required quality. The innovative design can capture both the fingerprint ID flats and rolled fingerprints, which make the device suitable for multiple uses.

With a large scanning area the MORPHS-60 can take ten fingerprints at a time which will boost the enrollment process for various government projects like UID-Aadhaar, National ID, and NPR. Their design and SDK architecture make it convenient to use for local and government organisations.

The device is designed for practicing in severe circumstances: the IP54 rating means protection against dust and water splashes. Besides, it functions when exposed to direct sunlight environment, up to 100K Lux and therefore it apply in different environments.

Having received the accreditation of the FBI in Appendix F Mobile ID FAP 60, the Mantra MORPHS-60 has proven to be compliant with the enhanced image quality and performance. It is designed to work best in adverse situations, and you will be surprised by the quality of the pictures it produces even when taken by dirty fingers. It also has other features of automatic sequence checking during the scanning process and assessment of image quality. Physically, the MORPHS-60 device with dimensions of approximately 173 x 147 x 121 mm and mass of approximately 1.6 kg can be used both for mobile observations in the field and installation in offices or centers of enrollment.

Choosing the Mantra MORPHS-60 means choosing a reliable biometric system that suits contemporary identification needs. This makes it possible for the device to deliver high speed when doing its work, superior image capture solution and durably built to provide an equally excellent performance in different types and levels of biometric applications. For both governmental and commercial solutions it incorporates all the necessities for the accomplishment of work using this scanner.

Operating Voltage

5V +/- 5% (USB Powered Device)

Fingerprint Sensor Type

Optical Scratch Free Sensor

Pixel Resolution

500 DPI +/- 1%

Platen Area

3.5 x 3.2 in. (90 x 81 mm)

Active Platen Area

3.2 x 3.0 Inch (81.2 x 76.2 mm)

Interface

USB 2.0, USB-IF certified

Operating Humidity

10-90% RH, non-condensing

Operating Temperature

0 to 50 °C

Ingress Protection Rating

IP65

Current Consumption

Operating : < 350 mA (Max) & Stand By : <80 mA (Max)

Capture mode

Auto capture with built-in quality check (incorporates NIST quality considerations)

Weight

3.6 lbs (1.6 kg)

Dimension

173 x 147 x 121 mm

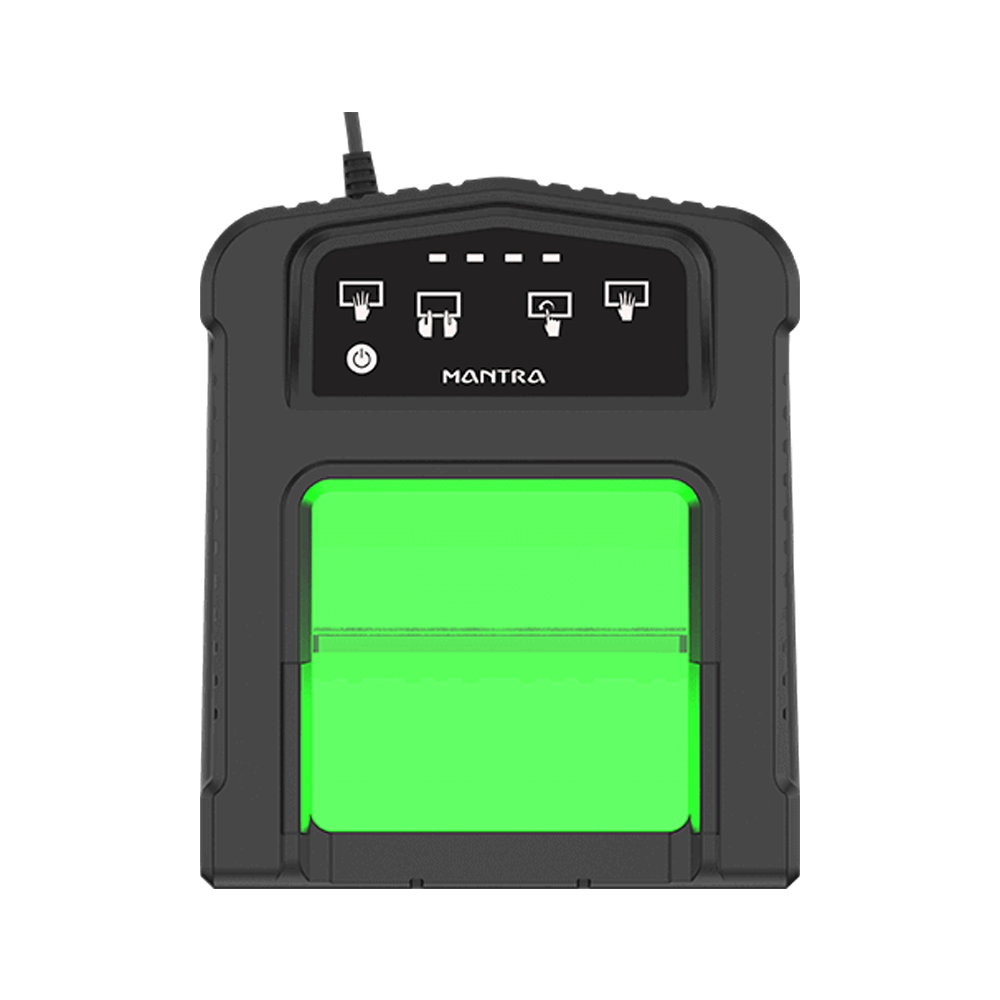

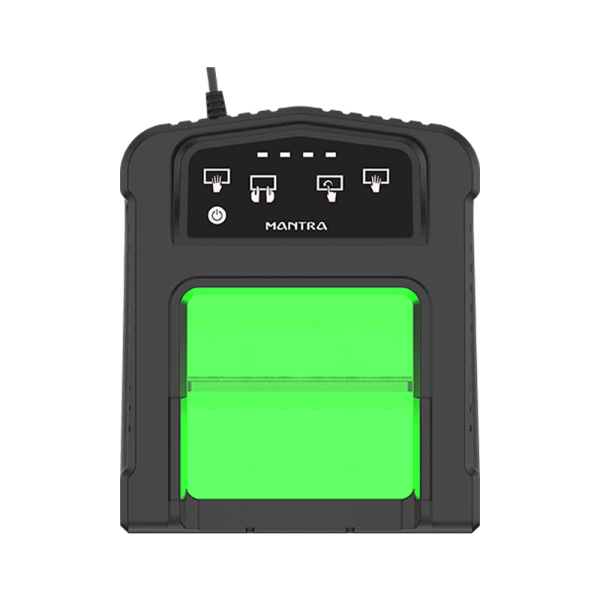

LED Indicators

Power, Status, and fingerprint image quality

ESD protection

Contact Discharge: +/- 4kV, Air Discharge: +/- 8kV

Operating System

Windows x86 & x64, Android, Linux

Standard Software

SDK : MIDFinger_Enroll

Image Quality

FBI’s IAFIS Appendix-F & Mobile ID FAP60

Safety

EN/IEC 62368-1, IS 13252 (Part 1)

Device Driver

WHQL certified

Finger Image Pixels

1600 x 1500 Pixels

Pixel Depth

8 Bits/Pixel (256 Gray Level)

brand

Mantra
